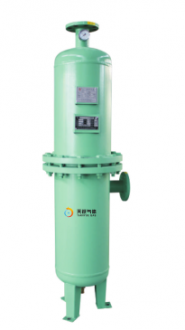

TYY efficient oil separator
product name: TYY efficient oil separator
Product number:SN20170829160806673
Update time:2017-08-29
Supply business home:
Views: 1069
This series of products set cyclone separation, coarse filtration, fine filter three purification as a whole, through the cyclone separation to remove large particles and droplets to reduce the coarse filter and fine filter load, and then through the coarse filter and fine filter combined effect , Can effectively remove the compressed air in the oil, water, dust, the filter accuracy of up to 0.1μm, residual oil less than 0.1ppm, so that the quality of gas purification to be reliable guarantee.
Working pressure: 0.6 ~ 1.0Mpa (according to the requirements of 1.0 ~ 3.0Mpa)
Intake air temperature: ≤ 45 ℃
Resistance drop: ≤ 0.015Mpa
3
Exhaust oil content: <0.1mg / m
Liquid separation rate: 99.9%
